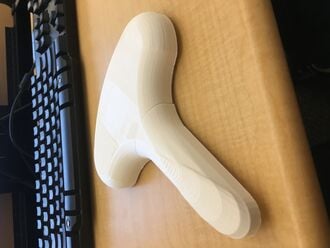

OSAT Bike Seat.JPG
FA info icon.svg Angle down icon.svg Project data
Authors Bpeticolas
Status Designed
Prototyped
Completed 2019
Made Yes
Replicated No
Cost USD 6
Instance of Bicycle part
OKH Manifest Download

This OSAT project is appropriate for countries where bikes are heavily relied on and cheap spare parts are helpful and necessary. In many countries people may be unable to afford replacement parts so this project provides a much cheaper alternative that is also very quick to access.

OSAT Bike Seat CAD Drawing.jpeg

Bill of Materials[edit | edit source]

The project comes in either 2 or 3 parts. Depending on the size of your 3d printer, you may have to print the seat in 2 prints. My 3D printer was only able to print 200mm x 200mm which is too small for the desired product. I split the seat up into the front and back. The front part takes 47g of PLA filament. The back part takes 187g. The seat post which meets the universal bike post diameter takes 51g of filament. This totals 285g which is around $6 per project at $23 per kg.

    1. CAD files wont upload ERROR: Appropedia is unable to handle the request
    2. STLs won't upload ERROR: File extension ".stl" does not match the detected MIME type of the file (application/x-extension-fcstd).

Tools needed[edit | edit source]

  1. Jellybox or similar RepRap 3-D printer
  2. 285g of PLA filament
  3. 35mm M5 screw

Skills and knowledge needed[edit | edit source]

No special skills needed to reproduce this OSAT project except knowledge of how to run a 3D printer

Technical Specifications and Assembly Instructions[edit | edit source]

  1. 1.75mm PLA
  2. 0.2 resolution
  3. 50% infill
  4. Printed with supports
  5. Print time ~ 24 hours
  6. Assembly time < 5 minutes

Common Problems and Solutions[edit | edit source]

  • Not printing with supports
  • Printing with too little infill

Cost savings[edit | edit source]

  1. $6
  2. Average bike seat cost on Amazon is around $20 or higher
  3. Commercial equivelant: 3 ac d pm?ac md=1-0-VW5kZXIgJDIz-ac d pm&keywords=bike+seat&pd rd i=B07D291WVD&pd rd r=68b6ec05-bd4a-4725-bb57-05d2bdbe18dd&pd rd w=iXlrq&pd rd wg=jiToP&pf rd p=24d053a8-30a1-4822-a2ff-4d1ab2b984fc&pf rd r=NNW66VS4F1G9PJ8JTZ2Z&psc=1&qid=1574225548&s=sporting-goods
  4. $14 or 70% cheaper

References[edit | edit source]

Viability of Distributed Manufacturing of Bicycle Components with 3-D Printing: CEN Standardized Polylactic Acid Pedal Testing

.
