DRYING OF CHILLIES[edit | edit source]

Harvesting[edit | edit source]

By definition 'processing' does not involve harvesting. However, one cannot produce a good quality product from badly harvested materials. Correct harvesting techniques could be said to be the most important factor in the production of a high quality final product.

For processing, chillies should not be picked until it starts going red.

Cleaning[edit | edit source]

The crop should be cleaned before processing. The first stage is to remove dust and dirt using a winnowing basket. This can be made locally from bamboo, palm or other leaves. Someone used to this work can remove the dust, dirt and stones quickly and efficiently (eg they could clean 100kg of chillies in an eight hour day). Small machines are available for cleaning but they are rarely cost-effective.

After winnowing the crop needs to be washed in water, all that is needed are two or three 15 litre buckets. For larger quantities a 1m³ sink/basin with a plughole needs to be constructed. This can be made out of concrete. However, the water must be changed regularly to prevent recontamination by dirty water. Only potable water should be used.

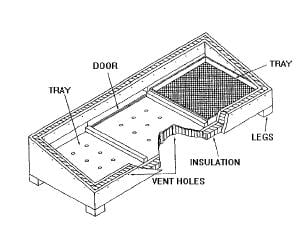

Figure 1: A cabinet solar dryer

Drying[edit | edit source]

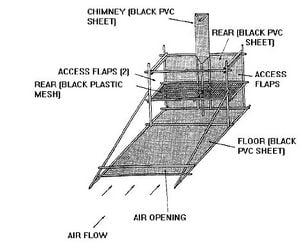

Figure 2: The 'Exell Solar Dryer'

This is by far the most important section in the process. The inability to adequately dry the produce will, at the very least slow down the whole process and possibly lead to mould growth or discolouration. Any produce with even a trace of mould cannot be used for processing. The sale value of mouldy chilli can be less than 50% the normal value. In extreme cases the whole crop can be lost.

Drying during the dry season[edit | edit source]

During the dry season, sun drying is usually adequate to dry the produce. The simplest and cheapest method is to lay the produce on mats in the sun. However, there are problems associated with this method. Dust and dirt are blown onto the crop and unexpected rain storms can re-wet the crop.

A solar dryer avoids these problems. The simplest type is the cabinet solar dryer, see Figure 1, which can be constructed out of locally available materials (eg bamboo, coir fibre or nylon weave).

For larger units (over 30kg/day an 'Exell Solar Dryer' could be used, see Figure 2. However, the construction costs are greater and a full financial evaluation should therefore be made to ensure that a higher income from better quality spices can justify the additional expense.

Drying during the wet season[edit | edit source]

During the wet season or times of high humidity, which often coincides with the harvest of the spices, a solar dryer or sun drying can not be used effectively.

An artificial dryer, which uses a cheap energy source is necessary. This may be a wood or husk burning dryer or a combined wood burning and solar dryer. Figures 3-6 show a combined wood burning and solar drier which is based on the McDowell Dryer and has been used in Sri Lanka.

Figure 3: A combined wood burning and solardrier
Figure 4
Figure 5
Figure 6

Over drying[edit | edit source]

Care needs to be taken to prevent over drying of the crops. A drier operator will soon learn how to assess the moisture content of the crops by hand. The final moisture content should be 10% wet basis.

Grading[edit | edit source]

In some cases the crop needs to be graded, eg high quality packaged products. Chillie is graded by colour and size this is done by hand. The brighter the colour red the better.

Grinding[edit | edit source]

Grinding may also add value but must be done carefully as there are difficulties. A whole, intact product can be easily assessed for quality whereas a ground product is more difficult. There is a market resistance to ground produce due to fear of adulteration. This can only be overcome by producing a consistently high quality product and gaining the confidence of customers. There are basically two types of grinders - manual grinders and mechanical grinders. A grinding mill has to be placed in a separate and well-ventilated room because of dust.

Manual grinding mills[edit | edit source]

There are many manual grinders that could be used to grind chillie (see equipment suppliers of the Small-scale Spice Processing Technical Brief).

An experienced operator can grind about 20kg in an eight hour day. However, this is hard and boring work. A treadle or bicycle could easily be attached to the grinder which will make the work easier. With this system one person could grind about 30kg in one day.

Work needs to be done to find out the degree of fineness the consumer wants. The grinding mills then need to be set so that they produce the desired ground product.

For small-scale production, (up to 100kg/day) a series of these grinders is all that is needed. For larger scale production units, a mechanical grinder would be required.

Mechanical grinding mills[edit | edit source]

Horizontal plate, vertical plate or hammer mills are suitable for grinding chillies. A grinding mill has to be placed in a separate and well-ventilated room because of the dust.

As above the grinding mill needs to be adjusted so that it grinds the chillies to the desired fineness.

Packaging[edit | edit source]

Packaging material
Packaging of these products, especially if they are ground requires polypropylene. Polythene cannot be used as the flavour components diffuse through it.

Simple sealing
The bags can be sealed simply by folding the polypropylene over a hacksaw blade and drawing it slowly over the flame of a candle. However, this is extremely uncomfortable as the hacksaw blade heats up and burns the hands of the operator. However, this is a very common technique.

Sealing machines
A sealing machine will speed this operation up considerably and produce a much tidier finish (which is very important).

The cheapest sealing machines have no timing mechanism to show when the bag is sealed and they have a tendency to overheat.

Sealing machines with timers are desirable. The machines come in many sizes. For most work an 8 inch (20cm) sealer is sufficient. Eye catching labels should be sealed above the product in a separate compartment and holed so the package can be hung-up in the shop.

Storage[edit | edit source]

A well designed and secure store is essential.

The optimal conditions for a store are: low temperature, low humidity and free from pests. The store should be located in a shaded, dry place. To keep humidity as low as possible only fully dried products should be stored in it. The produce should be checked regularly and if it has absorbed too much moisture it should be dried again.

To prevent pests entering, the roof should be completely sealed. Mosquito netting should be placed over the windows and doors should be close fitting.

References and further reading[edit | edit source]

Small-scale spice processing, (Practical Action Technical Brief)
Drying technologies, Practical Action Technical Brief
Drying of foods Practical Action Technical Brief
Solar drying Practical Action Technical Brief

Equipment suppliers[edit | edit source]

Note: This is a selective list of suppliers and does not imply ITDG endorsement.

Drying Equipment

Bombay Industrial Engineers 430 Hind
Rajasthan Centre
D.S. Phalke Road
Dadar (C.Rly.)
Mumbai - 400 014
Maharashtra
India
Tel: +91 (0)22 2411 39 99 / 2411 42 75
Tray, tunnel, drum and fluid bed driers are available.


Ashoka Industries Kirama
Walgammulla
Sri Lanka
Tel: +94 71 764725
The dryer uses paddy husk or saw dust as fuel.
Capacity: 15-75 kg/10 hours


Udaya Industries Uda Aludeniya
Weligalla
Gampola
Sri Lanka
Tel: +94 8 388586
Fax: +94 8 388909
Multi purpose dryers available for a wide range of food and agricultural products including; Cereals, Fruit, Herbs, spices, Vegetables.


Bay Hiap Thai Company Ltd Wernakorn
Kasem, Bangkok
Wernakorn Kasem,
Bangkok
Thailand
Tel: +66 2 2212432 / 2213670
Dried Chilli Roasting Machine 50 kg/hour
Gas powered

Sealing machines
Doboy Limited
2 Blaydon Road
Sandy
SG19 1RB
United Kingdom
Tel: + 44 (0)1767 82911
Fax: +44 (0)1767 291763


Hulme Martin Limited
6 Brownlow Mews
Guilford Street
London
WC1N 2LD
Tel: +44 (0)20 7242 5448
Fax: +44 (0)20 7242 2044



Orbit Equipments PVT. Ltd.
Block No.1
Venkat Reddy Complex
Tarbund X Roads
Secunderabad - 560 009
India
Telephone: +91 (0)40 2817296
Fax: +91 (0)40 2813877
Packaging machines such as heat sealers, carton-sealing machines, stretch wrapping machines, case packers and palletisers.
